Prince - Scalable Vector Graphics (SVG)

SVG can be included in any XML document simply by adding a svg element.

The display, float and flow properties and all margin, padding, border and background properties can be applied to the top-level svg element but not to child elements within it.

The following elements are supported inside the svg element:

Element	Usage
g	for grouping related graphics elements
rect	for defining rectangles
circle	for defining circles
ellipse	for defining ellipses
line	for defining lines
polyline	for defining polylines
polygon	for defining polygons
path	for defining arbitrary paths
text	for defining text
tspan	for adjusting text and font properties and the current text position inside the text element

Element

Usage

for grouping related graphics elements

rect

for defining rectangles

circle

for defining circles

ellipse

for defining ellipses

line

for defining lines

polyline

for defining polylines

polygon

for defining polygons

path

for defining arbitrary paths

text

for defining text

tspan

for adjusting text and font properties and the current text position inside the text element

View box and view port

The svg element should include view box and view port information so that the SVG content can be correctly mapped to the containing box.

XML

<svg width="3cm" height="2cm" viewBox="0 0 300 200">
    <!-- the SVG content -->
</svg>

Attribute	Meaning
width	the width of the viewport (100% of the container width, if omitted)
height	the height of the viewport (100% of the container width, if omitted)
viewBox (x y width height)	the x, y coordinate of the top left corner of the view box and the width and height of the viewbox

Attribute

Meaning

width

the width of the viewport
(100% of the container width, if omitted)

height

the height of the viewport
(100% of the container width, if omitted)

viewBox
(x y width height)

the x, y coordinate of the top left corner of the view box and the width and height of the viewbox

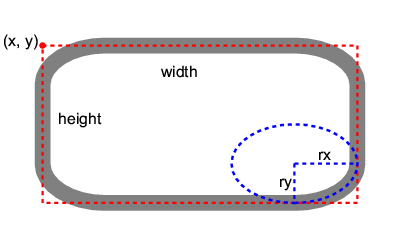

Rectangles

Rectangles are created using the rect element.

Attribute	Meaning
x, y	the x, y coordinate of the top left corner of the rectangle
width	the width of the rectangle
height	the height of the rectangle
rx, ry	the radii for rounded corners

Attribute

Meaning

x, y

the x, y coordinate of the top left corner of the rectangle

width

the width of the rectangle

height

the height of the rectangle

rx, ry

the radii for rounded corners

XML

<svg viewBox="0 0 500 300"
        width="10cm" height="6cm">
 <g fill="none" stroke="gray" stroke-width="20">
  <rect x="50" y="50" width="400" height="200"
        rx="80" ry="50"/>
 </g>
</svg>

Output

Circles

Circles are created using the circle element.

Attribute	Meaning
cx, cy	the centre of the circle
r	the radius of the circle

Attribute

Meaning

cx, cy

the centre of the circle

the radius of the circle

XML

<svg viewBox="0 0 200 200"
        width="5cm" height="5cm">
 <g fill="none" stroke="gray" stroke-width="20">
   <circle cx="100" cy="100" r="100"/>
 </g>
</svg>

Output

Ellipses

Ellipses are created using the ellipse element.

Attribute	Meaning
cx, cy	the centre of the ellipse
rx, ry	the radii of the ellipse

Attribute

Meaning

cx, cy

the centre of the ellipse

rx, ry

the radii of the ellipse

XML

<svg viewBox="-10 0 220 200"
        width="6cm" height="6cm">
 <g fill="none" stroke="gray" stroke-width="20">
  <ellipse cx="100" cy="100" rx="100" ry="60" />
 </g>
</svg>

Output

Lines

Lines are created using the line element.

Attribute	Meaning
x1, y1	the start point of the line
x2, y2	the end point of the line

Attribute

Meaning

x1, y1

the start point of the line

x2, y2

the end point of the line

XML

<svg viewBox="0 0 100 50"
        width="6cm" height="3cm">
 <g stroke="gray" stroke-width="2">
    <line x1="10" y1="25" x2="90" y2="25"/>
 </g>
</svg>

Output

Polylines

Polylines are created using the polyline element.

Attribute	Meaning
points	list of points that defines the line. Points are separated by space; each point is a pair of x, y coordinates separated by comma.

Attribute

Meaning

points

list of points that defines the line. Points are separated by space; each point is a pair of x, y coordinates separated by comma.

XML

<svg viewBox="0 0 600 400"
        width="6cm" height="4cm">
 <g stroke="gray" stroke-width="10">
  <polyline points="50,300 200,300 200,100
               400,100 400,300 550,300" />
 </g>
</svg>

Output

Polygons

Polygons are created using the polygon element.

Attribute	Meaning
points	list of points that defines the line. Points are separated by space; each point is a pair of x, y coordinates separated by comma.

Attribute

Meaning

points

list of points that defines the line. Points are separated by space; each point is a pair of x, y coordinates separated by comma.

XML

<svg viewBox="600 0 600 400"
        width="6cm" height="4cm">
 <g fill="none" stroke="gray" stroke-width="10">
    <polygon points="850,75  958,137.5 958,262.5
                    850,325 742,262.6 742,137.5" />
 </g>
</svg>

Output

Paths

The path element is for defining arbitrary paths. The d attribute inside the element path takes a list of path commands. Parameters of a command can be separated either by a space or a comma.

Command	Parameters	Meaning
M (absolute) m (relative)	(x y)+	moves to the given (x, y) coordinates to start a new subpath
Z or z	none	closes the current subpath
L (absolute) l (relative)	(x y)+	draws a line to the given (x, y) coordinates
H (absolute) h (relative)	x+	draws a horizontal line to the given x coordinates
V (absolute) v (relative)	y+	draws a vertical line to the given y coordinates
C (absolute) c (relative)	(x1 y1 x2 y2 x y)+	draws a cubic Bézier curve to the given (x,y) coordinates, uses the given (x1,y1) coordinates as the first control point, the (x2,y2) coordinates as the second control point
S (absolute) s (relative)	(x2 y2 x y)+	short hand of the C/c command: the reflection relative to the current point of the second control point of the previous command is used as the first control point.
Q (absolute) q (relative)	(x1 y1 x y)+	draws a quadratic cubic Bézier curve to the given (x,y) coordinates, uses the given (x1,y1) coordinates as the control point.
T (absolute) t (relative)	(x y)+	short hand of the Q/q command: the reflection relative to the current point of the control point of the previous command is used as the control point.
A (absolute) a (relative)	(rx ry x-axis-rotation large-arc-flag sweep-flag x y)+	draws an elliptical arc to (x, y): the size and rotation of the ellipse are defined by two radii (rx, ry) and the x-axis-rotation; the center (cx, cy) of the ellipse is also determined by the large-arc-flag and sweep-flag constraint.

Command

Parameters

Meaning

M (absolute)
m (relative)

(x y)+

moves to the given (x, y) coordinates to start a new subpath

Z or z

none

closes the current subpath

L (absolute)
l (relative)

(x y)+

draws a line to the given (x, y) coordinates

H (absolute)
h (relative)

draws a horizontal line to the given x coordinates

V (absolute)
v (relative)

draws a vertical line to the given y coordinates

C (absolute)
c (relative)

(x1 y1 x2 y2 x y)+

draws a cubic Bézier curve to the given (x,y) coordinates, uses the given (x1,y1) coordinates as the first control point, the (x2,y2) coordinates as the second control point

S (absolute)
s (relative)

(x2 y2 x y)+

short hand of the C/c command: the reflection relative to the current point of the second control point of the previous command is used as the first control point.

Q (absolute)
q (relative)

(x1 y1 x y)+

draws a quadratic cubic Bézier curve to the given (x,y) coordinates, uses the given (x1,y1) coordinates as the control point.

T (absolute)
t (relative)

(x y)+

short hand of the Q/q command: the reflection relative to the current point of the control point of the previous command is used as the control point.

A (absolute)
a (relative)

(rx ry x-axis-rotation large-arc-flag sweep-flag x y)+

draws an elliptical arc to (x, y): the size and rotation of the ellipse are defined by two radii (rx, ry) and the x-axis-rotation; the center (cx, cy) of the ellipse is also determined by the large-arc-flag and sweep-flag constraint.

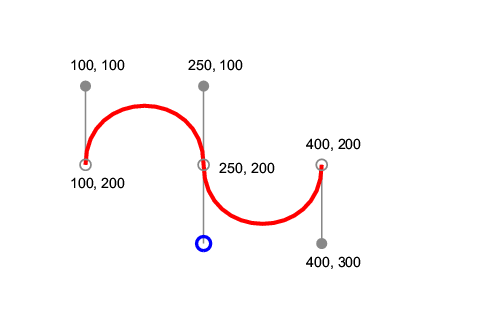

XML

<svg viewBox="0 0 600 400"
        width="12cm" height="8cm">
 <g fill="none" stroke="red" stroke-width="10">
    <path d="M100,200 C100,100 250,100
		    250,200 S400,300 400,200" />
 </g>
</svg>

Output

Text

The text element is supported inside the svg element; the tspan element is supported inside the text element.

Attribute	Meaning
x, y	the absolute position of the text
dx, dy	the relative offset of the current text position (optional)

Attribute

Meaning

x, y

the absolute position of the text

dx, dy

the relative offset of the current text position (optional)

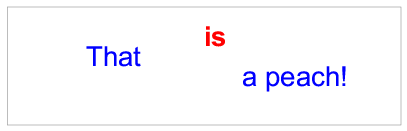

XML

<svg viewBox="0 0 1000 300"
        width="10cm" height="3cm">
    <text x="200" y="150" fill="blue" font-size="70">
      That
        <tspan dx="2em" dy="-50" font-weight="bold" fill="red" >
          is
        </tspan>
        <tspan dy="100">
           a peach!
        </tspan>
    </text>
</svg>

Output

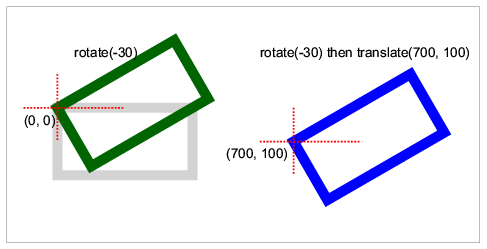

Transformations

The transform attribute can be used on g, path and all of the basic shape elements. It accepts any sequence of the following transformations separated by spaces.

translate(tx ty)
scale(sx [sy])
rotate(angle)
skewX(angle)
skewY(angle)
matrix(a b c d e f)

XML

<svg viewBox="-150 -200 1400 700" width="12cm" height="6cm">
  <g fill="none" stroke-width="30">
    <rect width="400" height="200" stroke="lightgray"/>
    <rect width="400" height="200" stroke="darkgreen" transform="rotate(-30)"/>
    <g transform="translate(700 100) rotate(-30)">
      <rect width="400" height="200" stroke="blue"/>
    </g>
  </g>
</svg>

Output

Style Properties

The following style properties are supported and can be applied to SVG elements:

font-family
font-size
font-style
font-weight
fill
fill-rule
stroke
stroke-linecap
stroke-linejoin
stroke-dasharray
stroke-dashoffset
stroke-width
text-anchor

There are two ways to apply style properties:

Using presentation attributes:

<rect fill="yellow" stroke="blue" stroke-width="20"
        width="200" height="100"/>

Using the style attribute:
```
<rect
  style="fill:yellow; stroke:blue; stroke-width:20"
  width="200" height="100"/>
```
the value of the style attribute is a list of style properties separated by semi-colons; each property is a name-value pair separated by a colon.
