Prince produces PDFs - which are a prominent example of paged media. There are a few differences that are crucial to keep in mind when preparing a document for paged media intended for print:
inside
and outside
, referring
to the layout on each page of the spread.Prince allows you to control a number of options that affect how to format pages, from straight-forward options such as page size, to decorations, headers and footers, numbering and page breaking options.
CSS properties that affect pages are specified within
page at-rules (see CSS At-rules).
For example we can use the size property within the
@page
rule
to specify the page size
(see Page size).
@page {
size: A4
}
In this section we will show most of the properties that can be specified within a page rule, then we will show how pagination can be controlled and how page styles can be applied to selected pages.
Most of the properties that can be applied to pages are straight forward and
will be discussed now.
Other properties require an understanding of Selecting pages,
therefore we discuss them after that section.
These include page breaking (Page breaks) and
rotating wide content to fit on a page, and use of the :blank
selector (Advanced paged media examples).
The section Advanced paged media examples will show advanced usage of paged media, highlighting the use of Named pages, Page groups, and more.
Page size can be specified using the
size
property in length units or by
a page size keyword (see Page Size Keywords for a list)
optionally combined with the portrait
or landscape
keyword.
/* Use A4 paper */
@page { size: A4 }
/* Use A4 paper in landscape orientation */
@page { size: A4 landscape }
/* These two custom sizes are equivalent */
@page { size: 30cm 40cm }
@page { size: 40cm 30cm landscape }
/* Use square paper, this sets width and height */
@page { size: 30cm }
Sometimes it can be useful to specify the page dimensions in pixels, for example when creating presentation slides. (see Presentation slides).
@page { size: 1280px 960px }
Pages, like other block level elements, follow the CSS box model
introduced in CSS Box Model.
Their
padding
,
border
,
margins
and
background
can be styled within @page
rules.
@page {
margin: 2cm;
}
Prince also supports the margin-outside
and
margin-inside
properties.
These allow you to specify different margins for the inside and outside
edges of paper as it is bound into a book.
For example it may be necessary to have a larger inside margin
(sometimes called a gutter)
so that after some of the margin is used by the binding, the remaining
margins are even.
@page {
margin: 2cm;
margin-inside: 3cm;
}
This is used in Fancy headers
When typesetting a magazine or flyer it can be useful to print right to the
edge of the paper. However most printers will refuse do do this. It is better
to print on larger stock and then crop the paper to the correct size.
If you use the marks
property, Prince will create
bleed and trim areas around your content (and the declared page size).

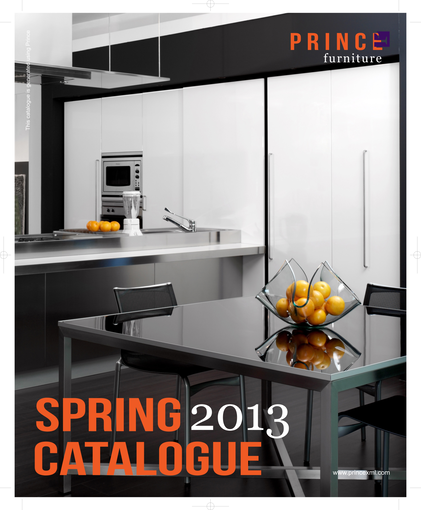

This can be seen in the catalogue example, adapted from the
Catalogue sample
in the Prince samples repository.
@page{
size: 8.5in 10.5in;
margin: 0;
background: url("images/CatalogueCover.jpg");
background-position: center;
background-size: 104%;
background-repeat: no-repeat;
marks: crop cross;
prince-bleed: 0.25in;
prince-trim: 0.25in;
}
This example uses some of the properties that we introduced above, plus
three new ones: marks
, prince-bleed
and prince-trim
.
These options enable crop and cross marks and specify bleed and trim areas.
Note that size of the content does not change when we add these options,
the page is still 8.5in by 10.5in as specified by the
size
property.
Instead 0.25in of bleed area and 0.25in of trim area has been added to each
edge (1in total).
Therefore we will need to print on 9.5in by 11.5in paper.
Prince will print solid background colours and repeating pictures into the
bleed area - we set the background size to 104% so that it would print
into the bleed area.
Prince also allows the placement, length and width of the crop marks to be
specified respectively with the
prince-mark-offset
,
prince-mark-length
and
prince-mark-width
properties.
Most content appears inside the page box of one or more
pages.
Surrounding the page box, within the margin area, but also overlaying
the page, are the page regions.

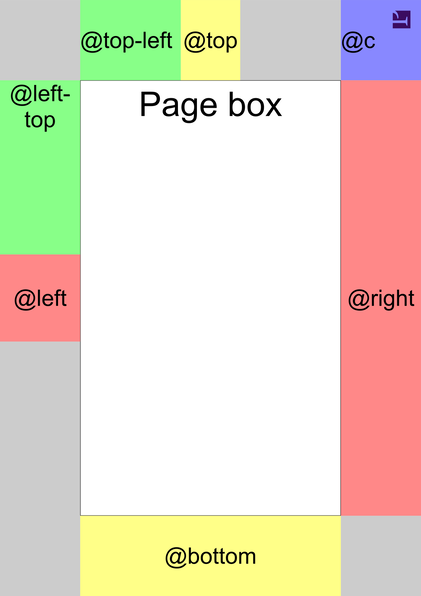

Figure
Page regions
shows the positions of some
page regions.
In this figure the @page
background is a
grey
and body's background is
white.
The first four page regions:
@top
,
@bottom
,
@left
and
@right
are easy to understand and are shown in
yellow
and red.
Each of these page regions has a synonym ending in -center
,
for instance @top-center
is the same as @top
.
You can place content in a page region with the content
property.
For example you can print the current page number at the bottom of each
page (see Generated Content):
@page {
@bottom {
content: counter(page)
}
}

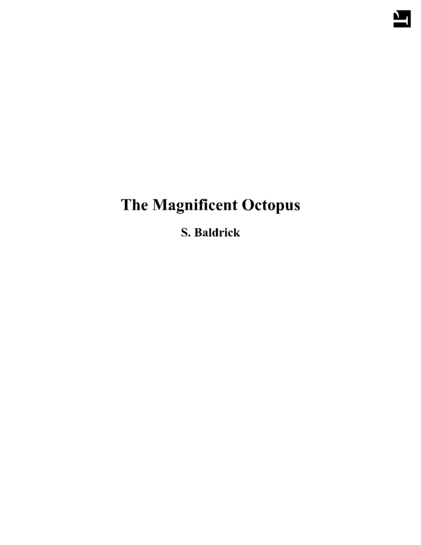

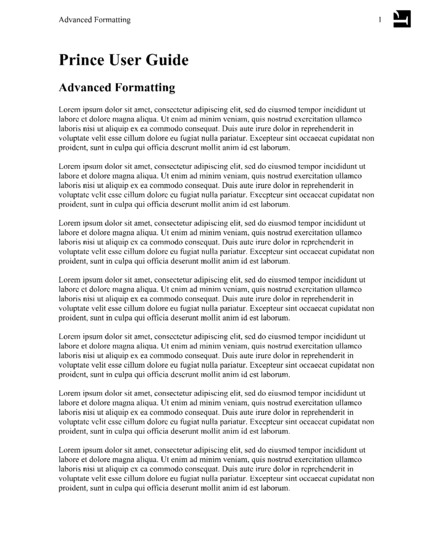

Novel title page example and Textbook page numbers example show examples of headers and footers.
Name | Default alignment | In figure | |
---|---|---|---|
text-align |
vertical-align |
||
@top |
center | middle | yellow |
@bottom |
center | middle | yellow |
@left |
center | middle | red |
@right |
center | middle | red |
@top-left |
left | middle | green |
@top-right |
right | middle | not shown |
@bottom-left |
left | middle | not shown, |
@bottom-right |
right | middle | not shown |
@left-top |
center | top | green |
@left-bottom |
center | bottom | not shown |
@right-top |
center | top | not shown |
@right-bottom |
center | bottom | not shown |
@top-left-corner |
right | middle | not shown |
@top-right-corner |
left | middle | blue |
@bottom-left-corner |
right | middle | not shown |
@bottom-right-corner |
left | middle | not shown |
@prince-overlay |
left | middle | not shown |
@footnotes |
left | middle | not shown |
Several other page regions can also be used.
All the page regions are shown in Page regions.
Prince will try to create page regions of the correct sizes,
If you need to create boxes of specific sizes you may need to use only a
single box (eg: @top
) and use the content
property to place elements with specific sizes in it.
Note that in the Figure
Page regions
Prince leaves space for
@top-right
and @left-bottom
boxes because their
counterparts (@top-left
and @left-top
respectively)
have been defined.
This keeps the @top
and @left
centered along the
top and side of the page respectively.
The page region @prince-overlay
is a special region, overlaying
all of the page box. A typical use is for creating watermarks on all pages
(see Watermarks).
The page region @footnotes
is placed at the foot of the page
box and contains the footnotes (see Footnotes).
Many CSS properties can be applied to page regions:
All of the
margin
,
padding
,
border
and
background
properties can be used to style page regions.
The vertical-align
property can be applied to any
page region to vertically align its content.
When a page region contains generated content, many inline style properties
such as color
and font
can be
applied to style the generated content.
We have already shown an example of using the page
counter to
print the page number at the bottom of each page,
this is one example of generated content.
The page
counter is predefined and starts at 1;
it increments automatically for each new page.
(Note that the page counter cannot be incremented manually using the
counter-increment
property.
The page
counter can be reset using the
counter-reset
property at any block-level element within
a non-floating element in the normal flow.
This is useful for restarting page numbering at a new section of the
document.
<body>
<div class="front"> cover page, etc, ... </div>
<div class="contents">
table of contents, ...
</div>
<div class="body">
<div class="chapter"> chapter 1...</div>
<div class="chapter"> chapter 2...</div>
</div>
<div class=appendix"> appendix1 </div>
<div class=appendix"> appendix2, ... </div>
</body>
.contents {
display: block;
page: table-of-contents;
counter-reset: page 1
}
@page table-of-contents {
@top { content: "Table of Contents" }
@bottom {
content: counter(page, lower-alpha)
}
}
.body {
display: block;
page: main;
counter-reset: page 1
}
@page main {
@top { content: string(chapter-title) }
@bottom {
content: counter(page)
}
}
.chapter h1 { string-set: chapter-title content() }
Restarting page numbering also uses Named pages which we will explain in more detail below. We create three types of pages: table-of-contents pages, main pages, and pages without a name.
The .contents rule names the pages that it
appears on as table-of-contents and resets the page counter to
1 at the start of the contents div.
Then the @page
rule for those pages generates a page footer
that contains the current page number in lower-alpha
style.
This rule also sets the page header to the string "Table of Contents".
The .body
rule names the pages that it appears on as
main and resets the page counter to 1 at the start of main div.
Then the @page
rule for the main pages generates a
page footer that contains the current page number in the default decimal
style.
This rule, together with the .chapter h1 rule,
sets the page header to the title of the chapter
(see Generated Content).
Pages that don't match either of these names have the default style, which does not include a page number in the footer.
In some documents,
particularly those that are unbound such as office documents,
it can be useful to show the total number of pages on each page.
The total number of pages can be accessed using the pages
counter.
This is a pre-defined counter that is fixed to the total number of pages in
the document.
@page {
@bottom {
content: "Page " counter(page) " of " counter(pages)
}
}
This rule will generate page footers such as "Page 1 of 89".

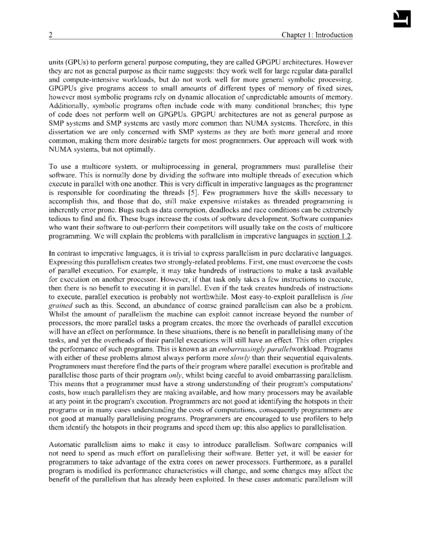

This example demonstrates a more complete headers style. It uses generated content to print page numbers, the chapter number and title and the section number and title using different styles for left and right pages. It also prints an underline under the header, See Fancy header example .
@page {
font-family: Times, Serif;
font-size: 11pt;
text-align: justify;
margin-top: 2cm;
margin-bottom: 2cm;
margin-inside: 3.5cm;
margin-outside: 2.5cm;
}
@page body:left {
@top-left {
content: counter(page);
vertical-align: bottom;
}
@top-right {
content: "Chapter " counter(chapter) ": " string(chapter);
vertical-align: bottom;
}
}
@page body:right {
@top-right {
content: counter(page);
vertical-align: bottom;
}
@top-left {
content: counter(chapter) "." counter(section) " "
string(section);
vertical-align: bottom;
}
}
@page body {
border-top: thin black solid;
}
@page body:first {
margin-top: 25%;
@top-left { content: normal; }
@top-right { content: normal; }
border: none;
}
@page body:blank {
@top-left { content: normal; }
@top-right { content: normal; }
border: none;
}
body {
font-family: Times, Serif;
font-size: 11pt;
text-align: justify;
padding: 0.5cm 0cm;
}
div.body {
page: body;
}
div.body h1 {
page-break-before: right;
prince-page-group: start;
string-set: chapter content();
counter-increment: chapter;
counter-reset: section;
}
div.body h1::before {
content: "Chapter " counter(chapter) ": ";
}
div.body h2 {
string-set: section content();
counter-increment: section;
}
div.body h2::before {
content: counter(chapter) "." counter(section) " ";
}
The main content area is 2.5cm from the page's edge on all sides.
On the left and right this is a margin of 2.5cm and on the top and bottom
it's 2cm of margin and 0.5cm of padding.
This places the bottom border of the
@top
page region 0.5cm from the main content area, enough to
avoid making it look crowded.
The header text has the vertical-align: bottom property to
ensure that it appears immediately above the border — the border
is made to look like an underline.
This example uses many properties and page selectors discussed later in
this section.
This is a small part of a larger
example in our Prince samples repository.
Another typical usecase for generated content is when content is moved from the document to a page page region by removing an element from the normal flow and placed in a page page region. See the section Taking elements from the document for details.
It is often necessary to apply styles to some pages, but not others. Either applying them to only some pages, or on every page except selected pages. CSS and Prince provide a number of page selectors for choosing which pages a rule applies to.
In a novel it is useful to print a page number at the bottom of every page,
except for some pages such as the title page.
In this example the @page
rule is applied to all pages.
Then the @page:first
rule,
which is more specific,
removes the footer from the first page.
See Page regions and Generated Content.
<html>
<head>
<style>
@page {
@bottom {
content: counter(page)
}
}
@page:first {
margin-top: 10cm;
@bottom {
content: normal
}
}
h1, h2.subtitle {
text-align: center
}
h2.chaptertitle {
page-break-before: always
}
</style>
</head>
<body>
<h1>The Magnificent Octopus</h1>
<h2 class="subtitle">S. Baldrick</h2>
<h2 class="chaptertitle">Chapter 1</h2>
<p>Once upon a time there lived a little saussage.</p>
</body>
</html>
In this example the @page
rule specifies styles that apply to
all pages:
Then the @page:first
rule overrides this for the first page
only.
It resets the content
property for the footer and
increases the top margin,
printing the title of the novel in a reasonable place on the page
(see Page style).
This example also uses the
page-break-before
property to force a page break
(see Page breaks).
When using the :first
page selector to choose the first page
in each chapter (such as in Fancy headers) it may be
necessary to add
prince-page-group: start
to the first element in each chapter (such as h1
).
See Page groups.
The :left
and :right
page
selectors can be used to style left and right pages in a bound book
differently.
This is often used in text books to place the page number on the outside
top corners of pages.
@page:left {
@top-left { content: counter(page) }
@top-right { content: string(book-title) }
margin-left: 2cm;
margin-right: 3cm;
}
@page:right {
@top-left { content: string(chapter-title) }
@top-right { content: counter(page) }
margin-left: 3cm;
margin-right: 2cm;
}
h1 { string-set: book-title content() }
h2 { string-set: chapter-title content() }
These rules also place the book title in the header of left pages,
and the current chapter's title in the header of right-facing pages.
The book title is copied from the text content of the
h1
element while the chapter title is copied from the
text content of the h2
elements
(see Generated Content).
They also specify wider margins in the gutter of the
page spread;
binders may need this extra width for a book's binding.
The first page in a document using the default left-to-right reading order is a right page. Imagine the cover or a title page of a book which appear on a right page. The first page of a right-to-left document is a left page.
By putting page-break-before: left
or right
at the
very beginning of the document, it will not leave a blank page, but instead will
change whether the document begins on a left or right facing page.
Sometimes it can be useful to select the Nth page in a
document.
The :nth(
page selector can be
used to do this:
@page:nth(42) {
...
}
A special case are blank pages.
As we discussed in the previous section
page-break-before: right
can be used to place the first page of a chapter on the right page in a
spread.
If the previous page is a right page then two page breaks are inserted,
leaving a blank left page.
However, this page will have normal @page
styles applied to it,
which is usually not what people want.
The :blank
page selector can be used to change the style of
blank pages, pages skipped such as a left page before a
page-break-before: right
,
including removing any content.
@page:left {
@top-left {
content: counter(page);
}
}
@page:right {
@top-right {
content: counter(page);
}
}
@page:blank {
@top-left {
content: normal;
}
@top-right {
content: normal;
}
}
h1 {
page-break-before: right;
}
This example clears the generated content used on these pages.
This works because :blank
is more specific than either
:left
or :right
.
The :blank
page selector can also be used with named pages.
@page frontmatter {
@bottom { content: counter(page, lower-roman); }
}
@page frontmatter:blank {
@bottom { content: normal; }
}
Note that when used with named pages,
the blank page has the same name as the page following it.
For example when typesetting a book with frontmatter
named
pages for the title page, table of contents etc,
and main
named pages for the main content.
Will need the blank page (if one is produced) between the table of contents
and the first chapter to be typeset with @page main:blank
page
selector.
If chapter 1 also resets page numbering, then the page numbers will be reset on the first content page (a non-blank page).
It is not always best to have no content on blank pages. Sometimes otherwise blank pages are required have some content, such as a notice saying "This page sententially left blank". For example in legal documents this prevents people from mistaking a dangerous printing error for an intentionally blank page.
Prince will create page breaks automatically when new content will not fit on a page. Sometimes it is useful or necessary to control where page breaks should and should not be used. There are two ways to do this, and both are useful in different circumstances: page breaks can be added or prohibited with the Page breaks properties, and the how to control where within a paragraph a page break may occur with Widows and orphans properties.
The simplest case is when you want to explicitly create a page break. This is typically used at the beginning of a chapter, to start the new chapter on a new page.
h1 {
page-break-before: always
}
page-break-before
is used to force a page break immediately before an
h1
element,
New chapters are often started on the recto
pages in text books, this is usually the right page:
h1 {
page-break-before: right
}
Other values are
auto
,
avoid
and left
.
The property page-break-after
may also be used to force a
page break after an element,
It is necessary to force a page break when creating overhead slides.
This can be done by placing the content for each slide in a
<div class="slide">
and using
page-break-before: always
as shown below.
This example shows other styling that may be required to create presentation
slides.
@page {
size: 1280px 960px;
@bottom-left {
content: "Presentation Title";
}
@bottom-right {
content: counter(page);
}
background: black;
color: white;
font-family: DejaVu Sans, sans-serif;
font-size: 16pt;
margin: 96px;
}
@page:first {
@bottom-left { content: normal }
@bottom-right { content: normal }
}
div.centerpage {
/*
* Cause the content on these pages to begin part-way through
* the page. This is useful for a title page.
*/
margin-top: 33%;
}
body {
font-size: 28pt;
font-family: DejaVu Sans, sans-serif;
color: white;
}
div.slide {
page-break-before: always;
}
<div class="slide">
<h2>Slide Title</h2>
<p>
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do
eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim
ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut
aliquip ex ea commodo consequat. Duis aute irure dolor in
reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla
pariatur. Excepteur sint occaecat cupidatat non proident, sunt in
culpa qui officia deserunt mollit anim id est laborum.
</p>
</div>
The font-family
and color
properties are
specified both in the @page
and body
rules, even
though they're the same.
This is required because the page regions are outside of the
body
and must be styled separately, likewise the content within
body
cannot be styled by the @page
rule.

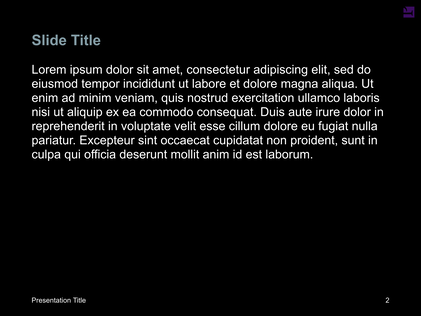

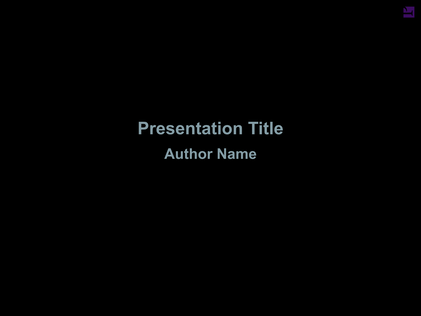

A rendered slide for this example is shown in Presentation slides example . The example has been adapted from slides (HTML+CSS) for a presentation about the Mercury programming language. This is part of our samples repository. You are encouraged to use samples from the repository and contribute your own.
So far we have discussed forcing a page break,
however suppressing page breaks is also important.
For example,
it is poor style to have a page break between a header and the first
paragraph of a section.
Therefore, the default Prince stylesheet will use the
page-break-after
property to suppress page breaks
immediately after headers:
h1, h2, h3, h4, h5, h6 {
page-break-after: avoid
}
If a heading occurs at the bottom of a page, it may be moved to the next page to keep it with the content that follows it, usually a paragraph.
Avoiding page breaks within an element is also important.
For example, it is best to avoid breaks within a figure or table.
This can be done with the
page-break-inside
property:
.figure, table {
page-break-inside: avoid
}
If the figure or table would have been split across two pages, it may be moved to the next page to keep it in one piece. An element longer than one page will still need to be split across multiple pages.
Note that the page-break-inside
property cannot be used
to create page breaks;
its only valid values are auto
and avoid
.
These three properties can be applied to block-level elements, table rows and table row groups that occur within an in-flow element (ie. inside the normal flow of the document, not inside a float or an absolutely positioned block). Therefore the figure and table example only make sense when the figure or table is not floated.
Page breaks have similarities with column breaks, see Columns.
Just as breaking a page between a heading and the first paragraph below
the heading can look bad, breaking the page after only one or two lines
of a paragraph also looks bad. These stray lines are called
orphans.
The minimum number of orphans to allow can be specified with the
orphans
property (the default is 1).
p {
orphans: 2
}
Likewise the minimum number of lines to move to a new page
(widows)
can be specified with the widows
property
(the default is 1).
p {
widows: 2
}
It can be easy to confuse widows and orphans. However a mnemonic device can help: "An orphan is alone from the beginning [of the paragraph]; a widow is alone at the end [of the paragraph]". (Source Widows and orphans — Wikipedia).
