In this section we will process a very simple document. We've chosen a document that fits HTML's heading and paragraph structure naturally: a lab report. The lab report will have a title, an author and date, several headings (Aim, Hypothesis, Method, Results and Conclusion). It does not include a table of results, graphics or diagrams: it is a very simple lab report.
The report itself is very basic, the HTML source is shown below.
You can save the HTML to a file named
<!DOCTYPE html>
<html>
<head>
<title>Lab Report</title>
</head>
<body>
<h1>Lab Report</h1>
<h2 class="subtitle">John Doe</h2>
<h2>Aim</h2>
<p>
This simple document aims to show just how easy it is to generate PDFs from
HTML+CSS using Prince. The document mostly uses Prince's built in styles
for HTML, but it also applies some custom styles. The custom styles: center
the title and subtitle, choose fonts and specify the style for the hello
world exclamation below.
</p>
<h2>Hypothesis</h2>
<p>
Our hypothesis is that generating PDFs using Prince is easy.
By using a simple document containing only
<code>h1</code>,
<code>h2</code>,
<code>h3</code>,
<code>p</code>,
<code>code</code>,
<code>pre</code>,
<code>ul</code> and
<code>li</code>
tags and a simple stylesheet we will generate a PDF that looks good.
</p>
<h2>Method</h2>
<h3>Apparatus</h3>
<ul>
<li>Prince</li>
<li>This document</li>
<li>A stylesheet</li>
</ul>
<h3>Steps</h3>
Execute this on your computer's command line:
<code><pre>
$ prince style.css lab_report.html
</pre></code>
<h2>Results</h2>
<p id="hello">Hello World!</p>
<h2>Conclusions</h2>
<p>
If you're currently looking at a PDF file then this works.
</p>
<p>
The resulting file includes a title and subtitle (centered), a list of the
apparatus needed. The resulting file uses a sensible-looking a sans-serif
font except for the code tags which use a monospace font and the Hello World
exclamation which has serifs.
</p>
</body>
</html>
The report is written using very familiar HTML5 tags.
Headings (h1
, h2
and
h3
), paragraphs (p
) and
lists (ul
, li
) are used for
the report's structure,
the code
tag is used to identify code and
pre
is used to identify pre-formatted text.
All user agents, including Prince, associate default styles with all of these tags. Without any explicit styles Prince will format this document in a reasonable and familiar way, similar to most web browsers. The major difference between Prince and a web browser is that Prince needs to create discrete pages, a web browser will format the document as a continuous flow. See Paged Media for more information.
Process the document using the command line
prince
command:
$ prince lab_report.html
This will create a lab_report.pdf
file in the current directory.
If it did not, the Troubleshooting section may be useful.
When you open the document in a PDF viewer you should see something like
Unstyled lab report.
Prince has applied a default stylesheet to the document.
A different default stylesheet is used depending upon the document's type
(HTML or Docbook XML) see XML Input.
The default stylesheet may be overridden by other stylesheets, more on that
in Applying Style Sheets in Prince.
Prince's command line interface supports many options
(see Command-line Reference) and can be called from scripts and other
software.
However some users may not be comfortable with the command line interface.
On Windows,
Prince provides a more familiar GUI interface, which can be started by
choosing Prince from the start menu.

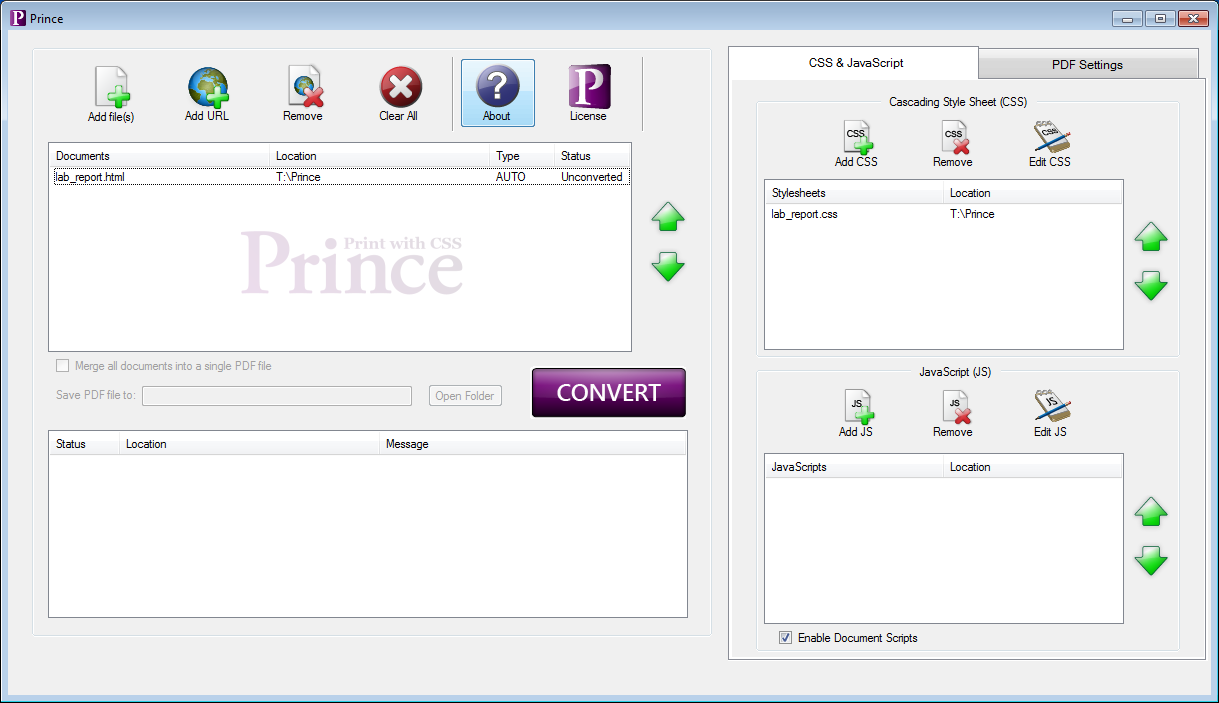

Prince GUI shows the Prince GUI,
click "Add File(s)" to choose your HTML file
(lab_report.html
)
then click the large "Convert" button to convert it.
Prince will generate a PDF file and place it in the directory with your HTML
file.
We can now make the report look better by adding our own styles. It is good practice to keep style information separate from the document itself. This makes it easy to modify or replace the styles later. The style information is kept in one or more Cascading Style Sheets (CSS) files.
Let's start by creating and opening a new file named
lab_report.css
,
First we can specify a sans-serif font for the document:
body {
font-family: sans-serif;
}
The default is a font with serifs, a sans-serif font is easier to read on a
computer screen while a serif font is easier to read when printed out.
See Text formatting and the font-family
property.
Next, let's center the title and subtitle and decrease the font size of the subtitle:
h1, h2.subtitle {
text-align: center;
}
h2.subtitle {
font-size: 14pt;
}
Note that we use the .class
syntax to style only the subtitle,
which is a h2
with the subtitle class,
without affecting the other h2
elements in the
document. See the section on CSS Selectors for more
information.
Information about alignment (such as centered text) can be found in the
Paragraph formatting section.
Finally we will make the "Hello World!" paragraph stand out.
This paragraph is identified by an id
attribute so we can use
the #id
syntax in the CSS
selector.
#hello {
color: red;
text-align: center;
font-size: large;
font-style: italic;
font-family: serif;
}
Okay, that's getting unnecessary,
however we can see just how easy it is to apply styles to our document.
You can download the complete CSS file here:
lab_report.css
.
There are many ways to apply a stylesheet to a document, for this tutorial we will show only three. For information about the ways that styles can be applied and style precedence see Applying Style Sheets in Prince.
-s
command line option:
$ prince -s lab_report.css
lab_report.html
Press the "Add CSS" button on the right of the Prince GUI and choose your CSS file (Prince GUI). You will need to click "Convert" again for these changes to take effect.
link
tag.
Place the tag within the head
tag of the
document. For example:
<!DOCTYPE html>
<html>
<head>
<title>Lab Report</title>
<link rel="stylesheet" href="lab_report.css" />
</head>
<body>
...
You will need to re-run Prince for these changes to take effect.

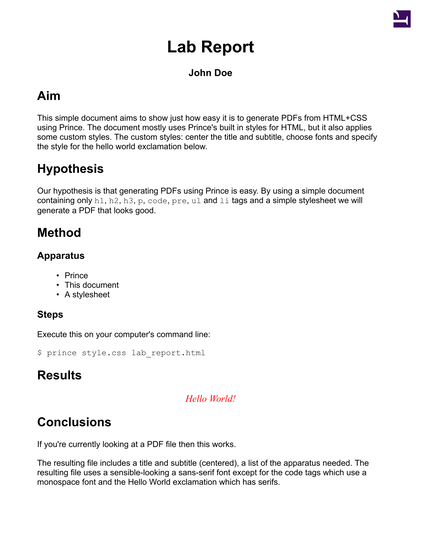

After applying the style as above, Prince should generate something similar
to Styled lab report
You can download the generated PDF file here:
lab_report-styled.pdf
.
This sample document and many others are available in our samples repository. You are encouraged to use samples from the repository and contribute your own.
